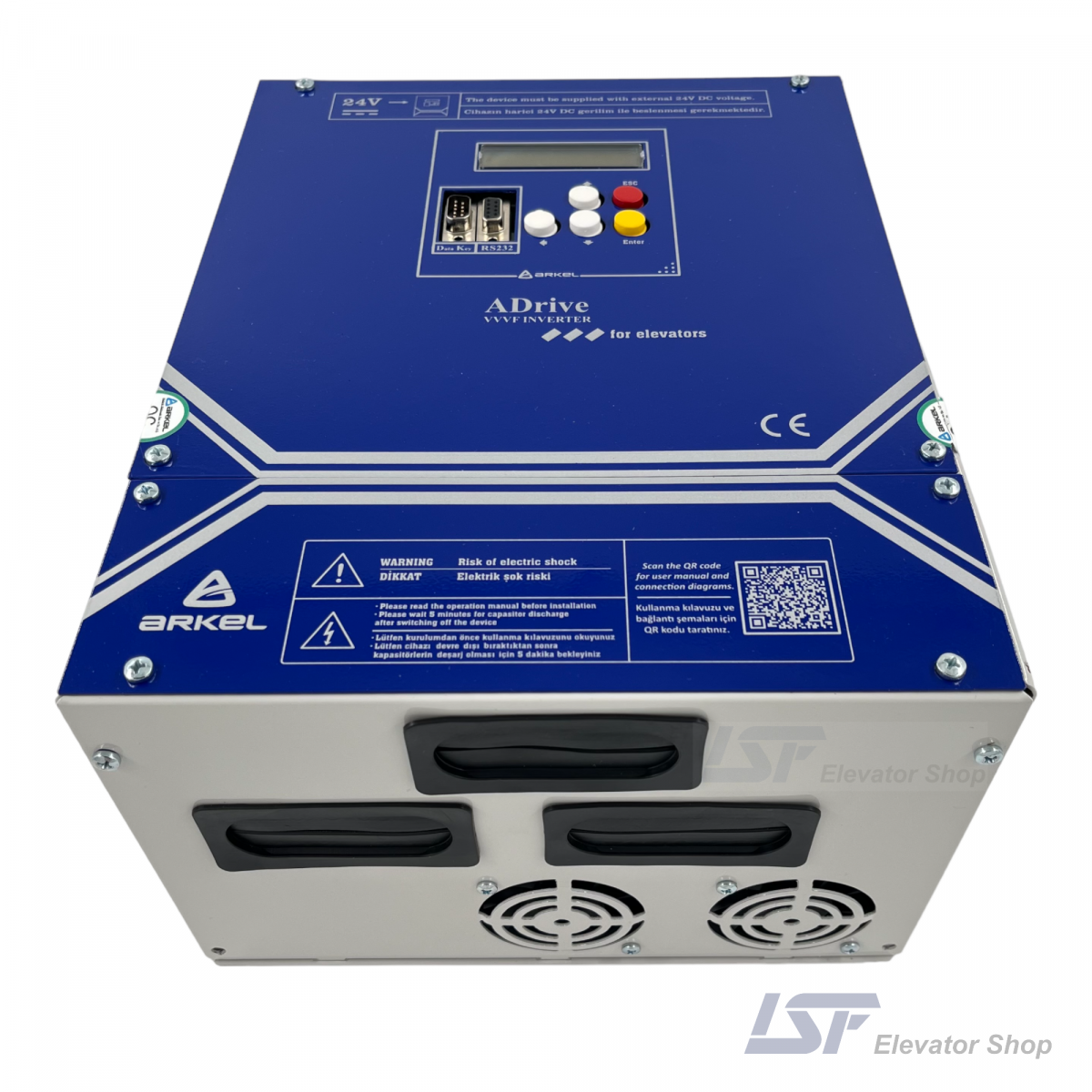

Arkel ADrive 4C220 VVVF Inverter (22kW, 50A, 400V)

Handle demanding, high-capacity elevator applications with the powerful Arkel ADrive 4C220 VVVF Inverter. As one of the higher-capacity models in the advanced ADrive series, rated for 22 kW motors and delivering a robust 50 A nominal current at 400V, this unit is designed for performance and reliability. Available from ISF Elevator Shop, the ADrive 4C220 integrates sophisticated vector control technology with essential elevator-specific safety features and superior energy efficiency, making it ideal for challenging lift systems.

Key Features & Benefits (ADrive 4C220):

• Optimized for 22kW Motors: Engineered to efficiently manage elevator motors up to 22 kW (~30 HP), suitable for heavy-duty passenger and goods lifts.
• Exceptional Ride Quality: Delivers outstandingly smooth acceleration, deceleration, and constant speed travel using precise VVVF vector control, minimizing noise and vibration even under significant loads. Features the critical Anti-Rollback function.
• Energy Efficiency: Despite its high power capacity, it optimizes energy usage compared to less advanced drive systems, contributing to reduced operating costs.
• Load-Independent Precision: Maintains accurate speed profiles and ensures precise floor leveling regardless of car load, crucial for high-traffic environments.
• Universal Motor Compatibility: Capable of driving both powerful Asynchronous (Induction) motors (open/closed loop) and high-torque Synchronous (Gearless) motors (closed loop, requires optional ENCABIT-Plus module).
• Emergency Operation Capable: Supports mandatory emergency evacuation procedures during power outages when correctly integrated with external 24VDC control power and a suitable battery or UPS system.
• Comprehensive Protection System: Includes built-in safeguards against overcurrent, over/undervoltage, short circuits, phase imbalances, thermal overload (drive & motor via PTC input), and other potential faults. EMC certified.
• User-Friendly Interface: Features the standard ADrive LCD screen and 5-key keypad for easy parameter setting, real-time monitoring, and diagnostics, utilizing clear elevator terminology.
• Advanced Integration & Diagnostics: Supports auto-tuning procedures, logs the last 256 faults for troubleshooting, and offers various communication interfaces for sophisticated elevator control system integration.

Typical Applications:

The ADrive 4C220 is the ideal solution for:

• High-Capacity Passenger Elevators: Busy commercial buildings, hospitals, hotels, shopping centers.
• Heavy Goods Lifts / Freight Elevators: Industrial facilities, warehouses, automotive lifts.
• High-Traffic Buildings: Locations requiring frequent and reliable elevator operation with significant loads.
• Modernization Projects: Upgrading drive systems on elevators with motors in the 22kW range.

Technical Specifications: Arkel ADrive 4C220

Optional Accessories:

• Arkel ENCABIT-Plus Module: Essential for connecting Absolute Encoders required by Synchronous motors.
• Arkel SCR01 ADrive Remote Keypad: Facilitates remote configuration, monitoring, and diagnostics.
• Arkel Data Key: Allows easy backup and transfer of parameters.
• Braking Resistor: Necessary for dissipating regenerative energy; must be sized appropriately for the application (consult ADrive manual).
• EMI Filter / Line Reactor: Recommended for achieving optimal EMC performance and reducing line harmonics.

Frequently Asked Questions (FAQ) – Arkel ADrive 4C220

Q1: What is the power capacity of the ADrive 4C220?
A: This inverter is designed for high-demand applications using elevator motors rated up to 22 kW (approximately 30 HP).

Q2: Is the ENCABIT-Plus module required for synchronous (gearless) motors with this drive?
A: Yes, the Arkel ENCABIT-Plus module is necessary to interface the required absolute encoders (EnDat, SSI, SinCos) for closed-loop control of synchronous motors.

Q3: Can it operate a standard induction motor?
A: Yes, the ADrive 4C220 supports both closed-loop vector control (with an incremental encoder) and open-loop V/F control (no encoder needed) for asynchronous (induction) motors.

Q4: What are the main differences compared to the ADrive 4C150?
A: The ADrive 4C220 offers a higher power rating (22kW vs 15kW) and nominal current (50A vs 35A). Both models share the same Size-C physical housing and core functionalities.

Q5: Does this drive include a braking resistor?
A: No. A braking resistor, appropriately sized for the high power and potential energy regeneration of a 22kW system, must be selected based on the elevator’s specifications and purchased separately. Refer to Arkel documentation for guidance.

Q6: How does this drive handle power outages?
A: It supports emergency evacuation mode when correctly integrated with an external 24VDC power supply for its control circuits and a suitable high-capacity battery pack or UPS connected to its main power input terminals (L1/L3).

Available Other ADrive Models:

The Arkel ADrive series is available in various power ratings to suit different motor sizes, typically installed within the main lift control panel:

• • ADrive 4B038 (3.8kW – 10A)
  • ADrive 4B055 (5.5kW – 14A)
  • ADrive 4B075 (7.5kW – 17A)
  • ADrive 4B110 (11kW – 26A)
  • ADrive 4C150 (15kW – 35A)
